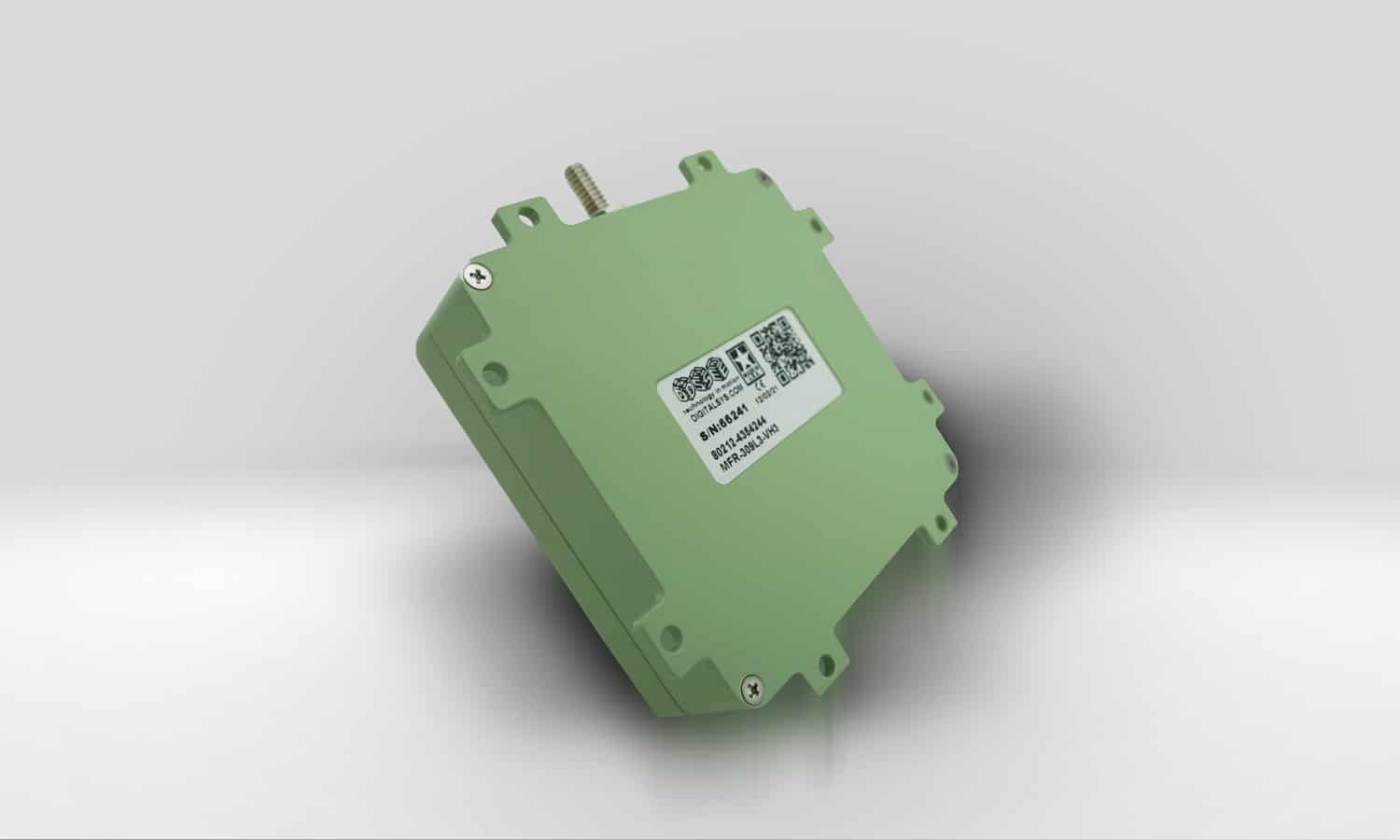

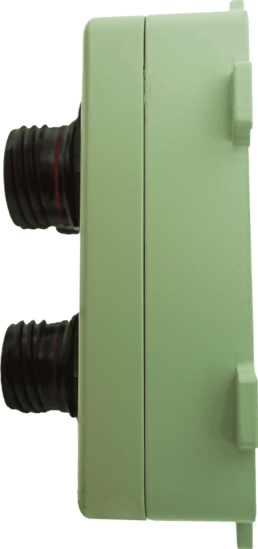

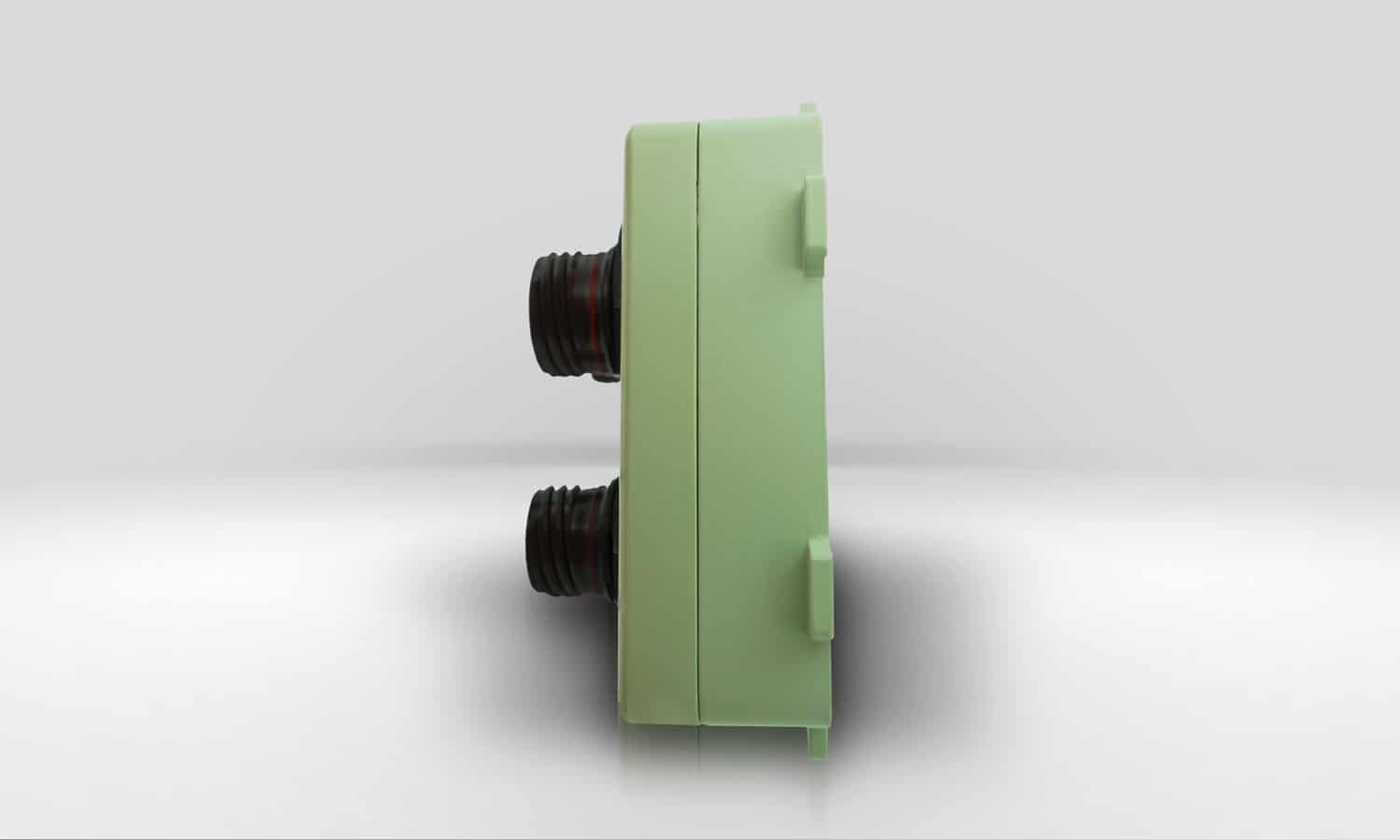

VH3
Video Distribution Hub
The MIL-SPEC VH3 video distribution system simplifies in-vehicle networking by allowing multiple analog camera feeds to be shared and routed efficiently to all crew members aboard. At less than 16 ounces and 45 cubic inches (4.62” x 4.62” x 2.1”), the VH3 is an optimal component for SWAP demanding applications.
Technical Specifications
| Video Inputs | Composite Video Inputs (3), NTSC and PAL Formats |
| Video Outputs | (8), NTSC and PAL Formats |
| Dimensions | 4.62” x 4.62” x 2.1” |
| Weight | 0.94lbs |

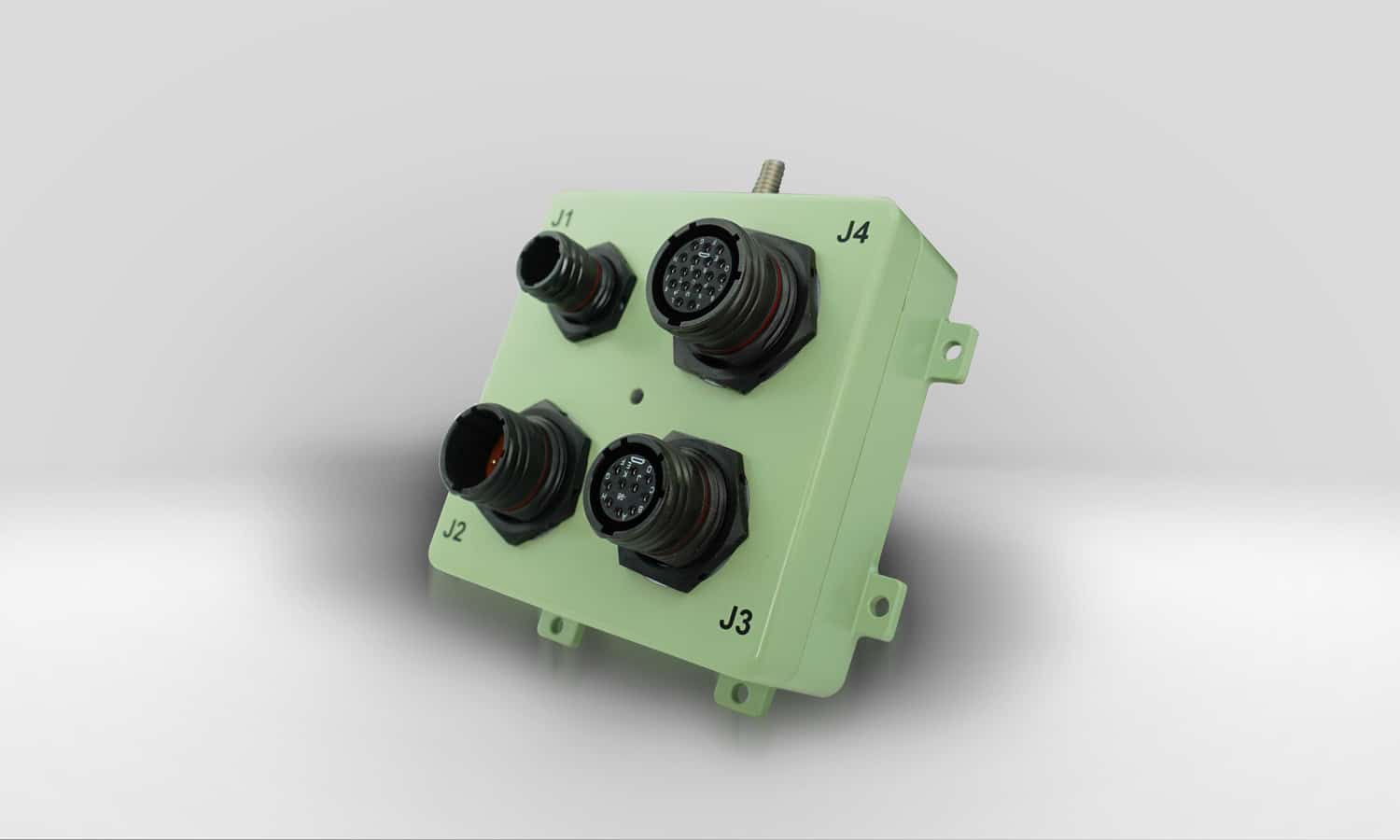

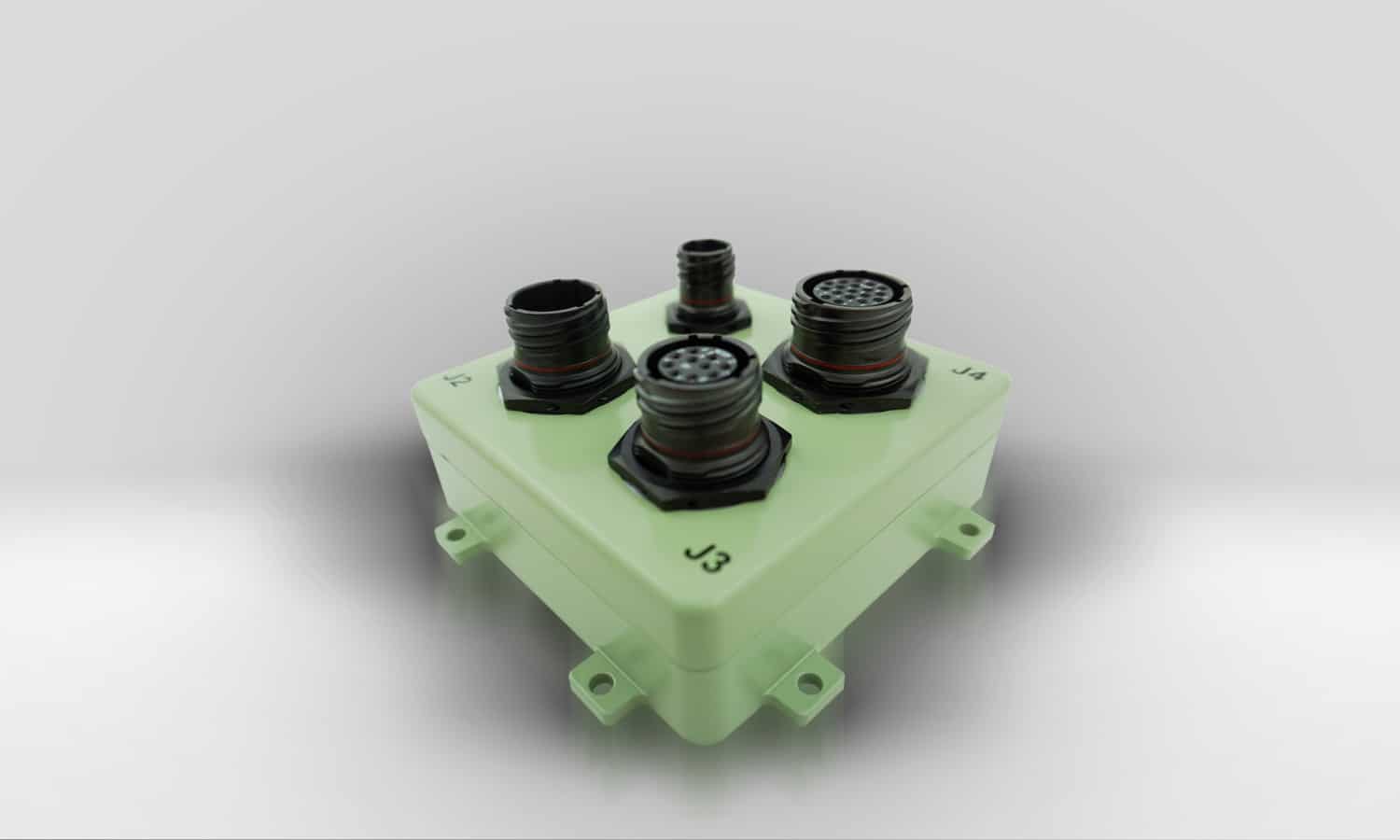

| MIL-C Connectors | 38999 Series III |
| Housing | Milled Aluminum, Black Hard Anodized (CARC Finishes Available) |
| Power Input | 10-36VDC |
| Enclosure | IP67/NEMA 6 |
Small & Powerful
Weight
At less than one pound, the VH3 video distribution hub may be integrated with ease.
Reduced Footprint
At ~4.5 x 4.5 x 2.1, VH3's small footprint is designed to fit nearly any application.
Video Processing
Repeater
The VH3 allows for simultaneous video distribution to multiple crew stations.
Quality
The VH3 balances video inputs prior to transmission, delivering high picture quality.
Built for Extreme Environments
Fully Sealed
Bring on water, sand, dust, grease, and chemicals. The VH3 series is protected to the IP67 standard for ingress of foreign substances.
MIL-STD 810
VH3 was designed to meet the most stringent requirements of MIL-STD 810, withstanding shock and vibration in extreme rugged applications.
Rugged Finish
With enclosure options including CARC paint or a hard anodized finish, the VH3 can be ruggedized to meet your environmental needs.
Real-world Rugged Application
The VH3 was integrated in the winning model of the US Marines Amphibious Vehicle Competition. Keep reading to learn more about how DSE leveraged its ability to modify existing COTS products and develop custom solutions in order to meet program demands.
