Products > Rugged Displays > The OVERSEER

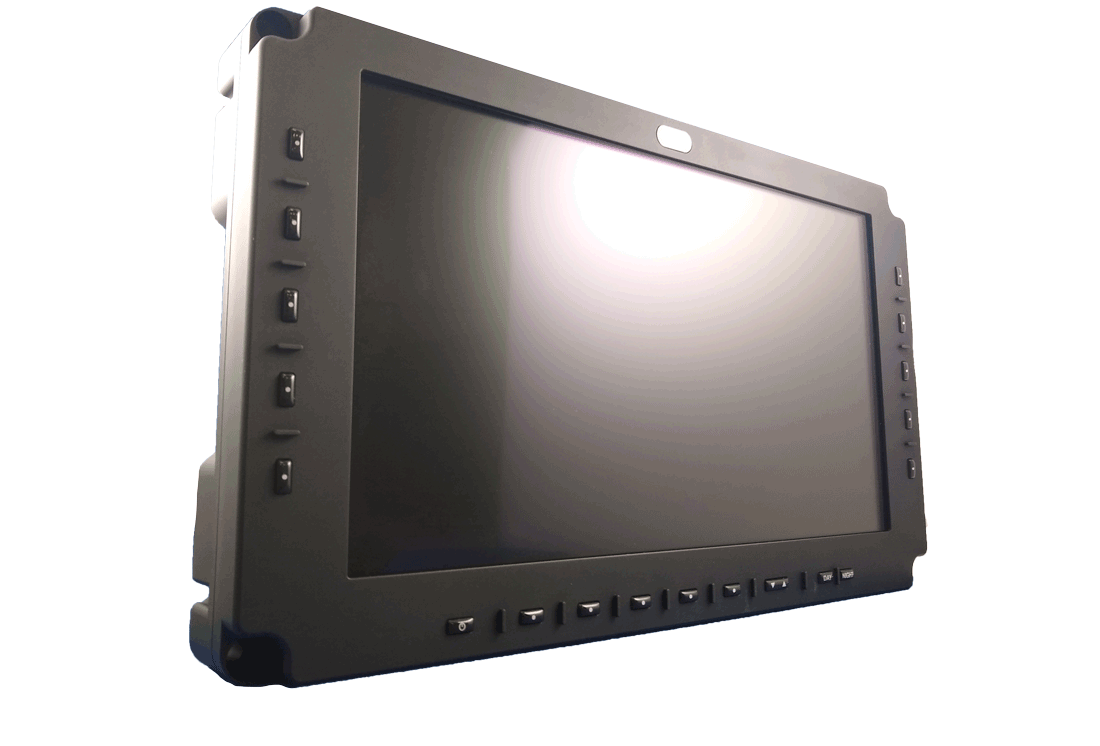

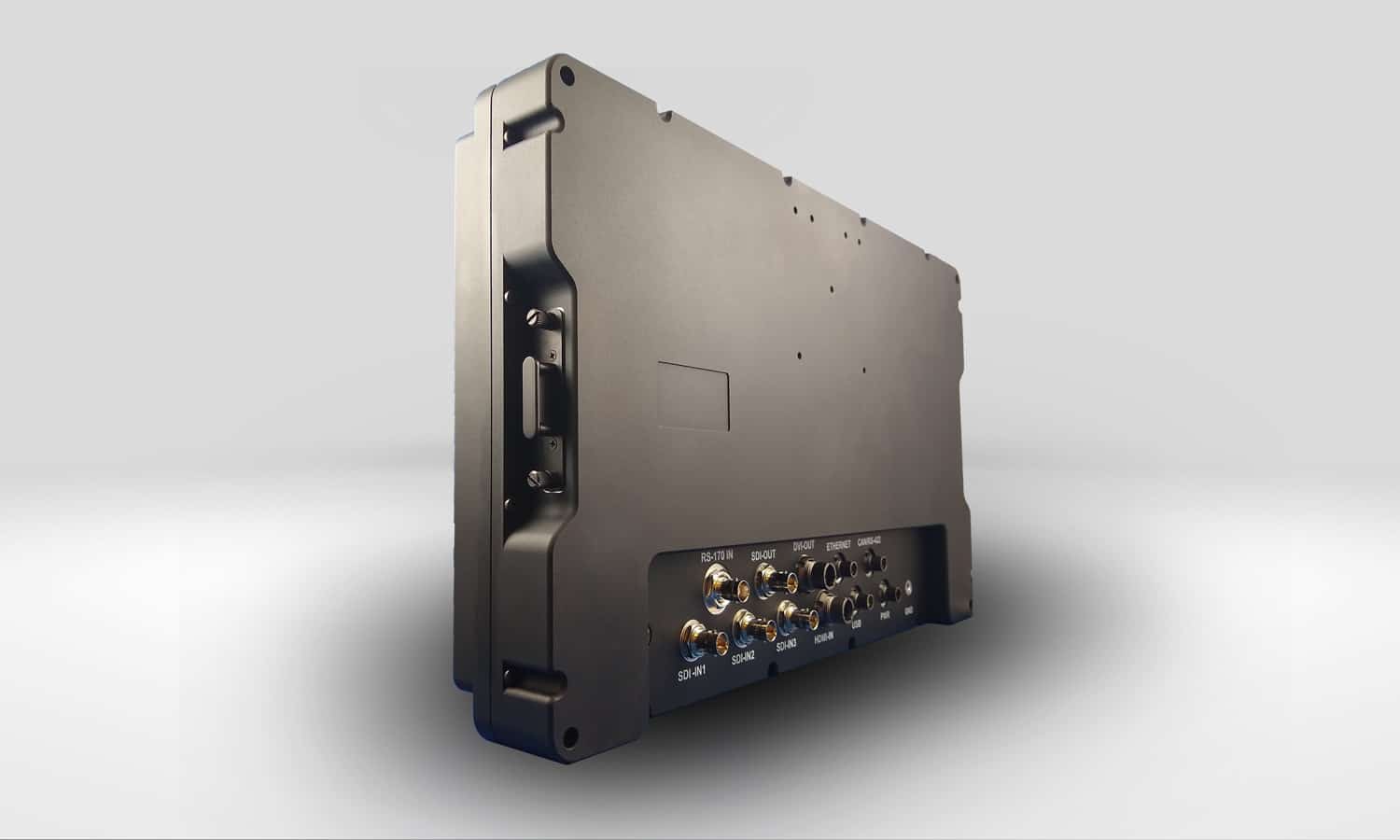

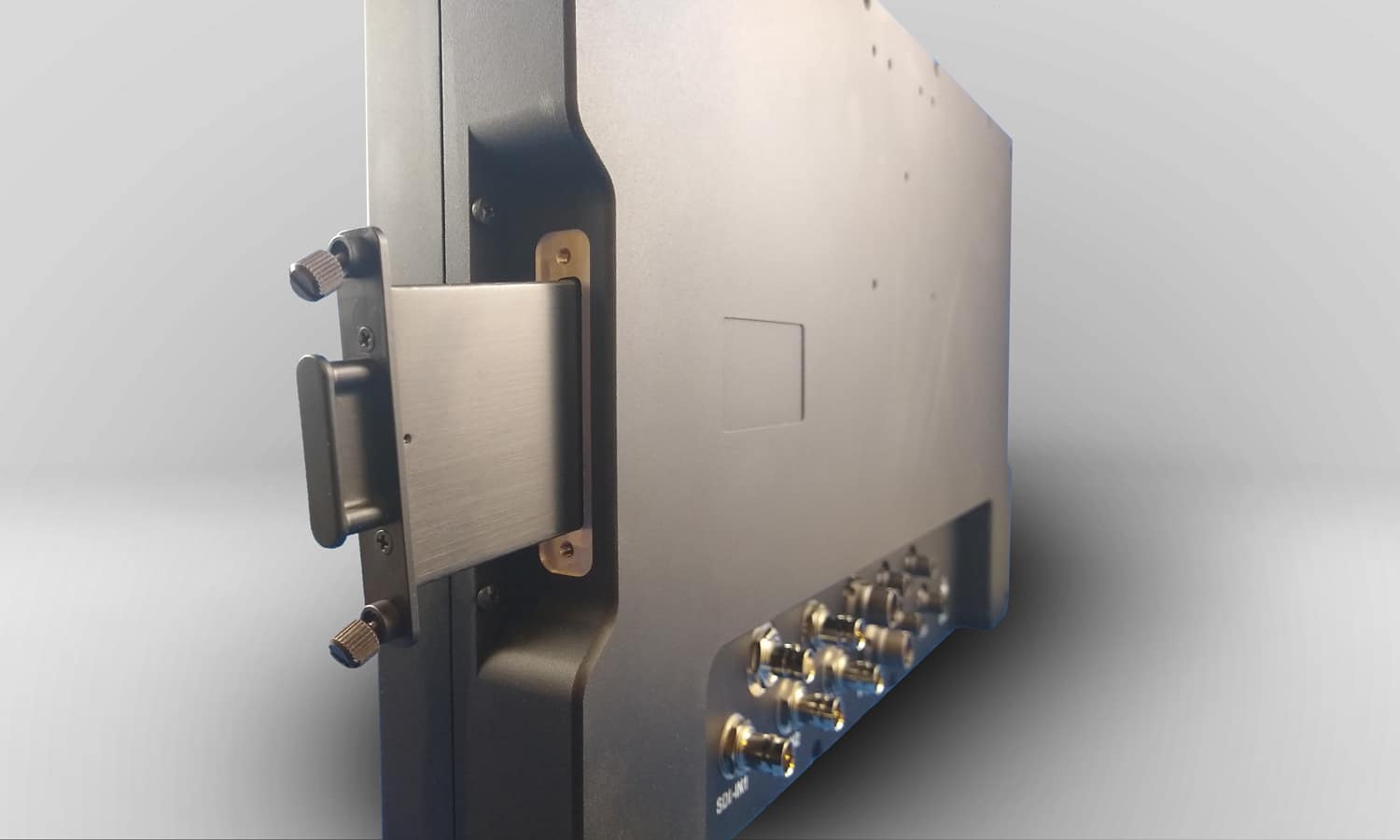

OVERSEER

1080p High-Def Rugged Monitor and DVR Series

Finally, a truly high definition display with all the SMARTS! Engineered for the toughest climates, the OVRCR smart displays are the only perfect high definition solution for a complex MIL-SPEC network system. With an onboard multi-channel DVR, Full HD (1080p) graphics, gigabit ethernet support, and a scalable processing backbone, the OVRCR has the intelligence to interpret, record, and communicate with the most advanced vehicular system in today’s cutting-edge military fleet. Robust graphic user interfaces, programmable bezel keys, optional touch screen, and customizable menus allow for this high-end smart display to be seamlessly installed and coexist with a wide array of sensors, computers, and communication networks.

Technical Specifications

Display Sizes 10.1, 13.3, 15.6, 17.3, 24.0″
LCD Resolution Full High Definition (1920 x 1080 and 1920 x 1200)
Video Inputs SDI (3) 3G/HD/SD, HDMI (1), Composite Video (NTSC/PAL) (1), DVI-D(1)
Video Outputs SDI (1) 3G/HD/SD
Communications GbE, CANBus, USB, RS-422
User Interface Programmable Bezel Keys, Optional Touch Screen
Options NVIS Compliance/Compatibility, Mounting Configurations
Power Input 10-36VDC
Standards MIL-STD 810, MIL-STD 461, MIL-STD 1275, MIL-STD 704, IP67, DO-160

Diverse Digital & Analog Interfaces

Powerful Video Encoder

Utilize Picture-In-Picture settings, customized view preferences, and fine tune image scaling and positioning.

Integrated Communications

Programmable bezel keys, resistive touch screen, and remote command/control allow easy interconnection with existing architecture.

Customizable Configurations

Choose from unique options such as CANBus, GPIO lines, and fully customizable RS422 command structures.


Field Tested MIL-Spec Design

EMI-461

Decades of experience designing and building rugged electronics to meet the stringent requirements of EMI-461 come together in the OVERSEER.


MIL-STD 1275

Never worry about managing dropout, spikes, transients, or over voltage with the OVERSEER’s wide range internal power supply.


Fully Sealed

Bring on water, sand, dust, grease, and chemicals! The OVERSEER series is protected to the IP67 standard for ingress of foreign substances.
